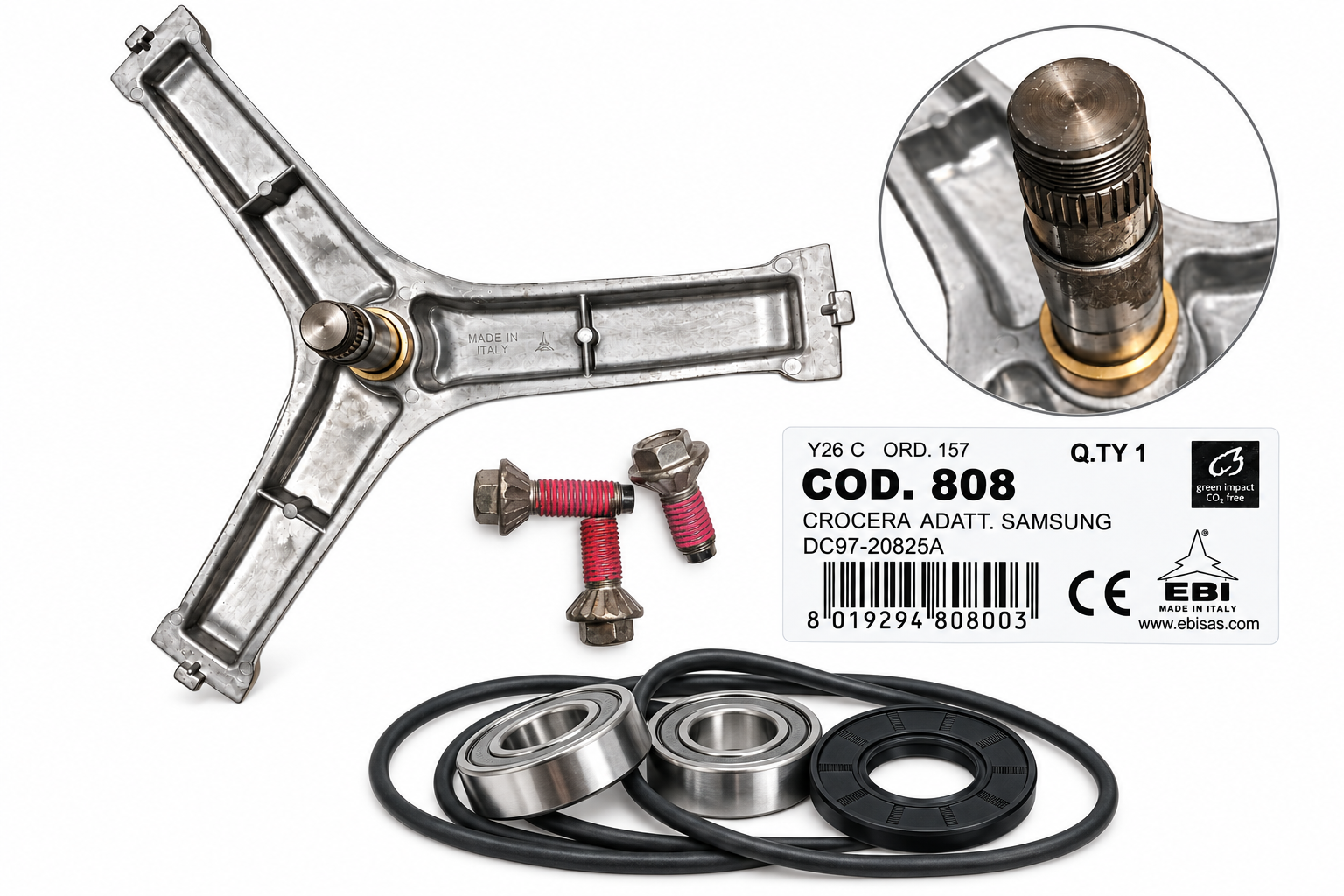

Samsung DC97-20825A replacement spider kit with 3 bolts, 6206 and 6207 bearings, oil seal and tub seal

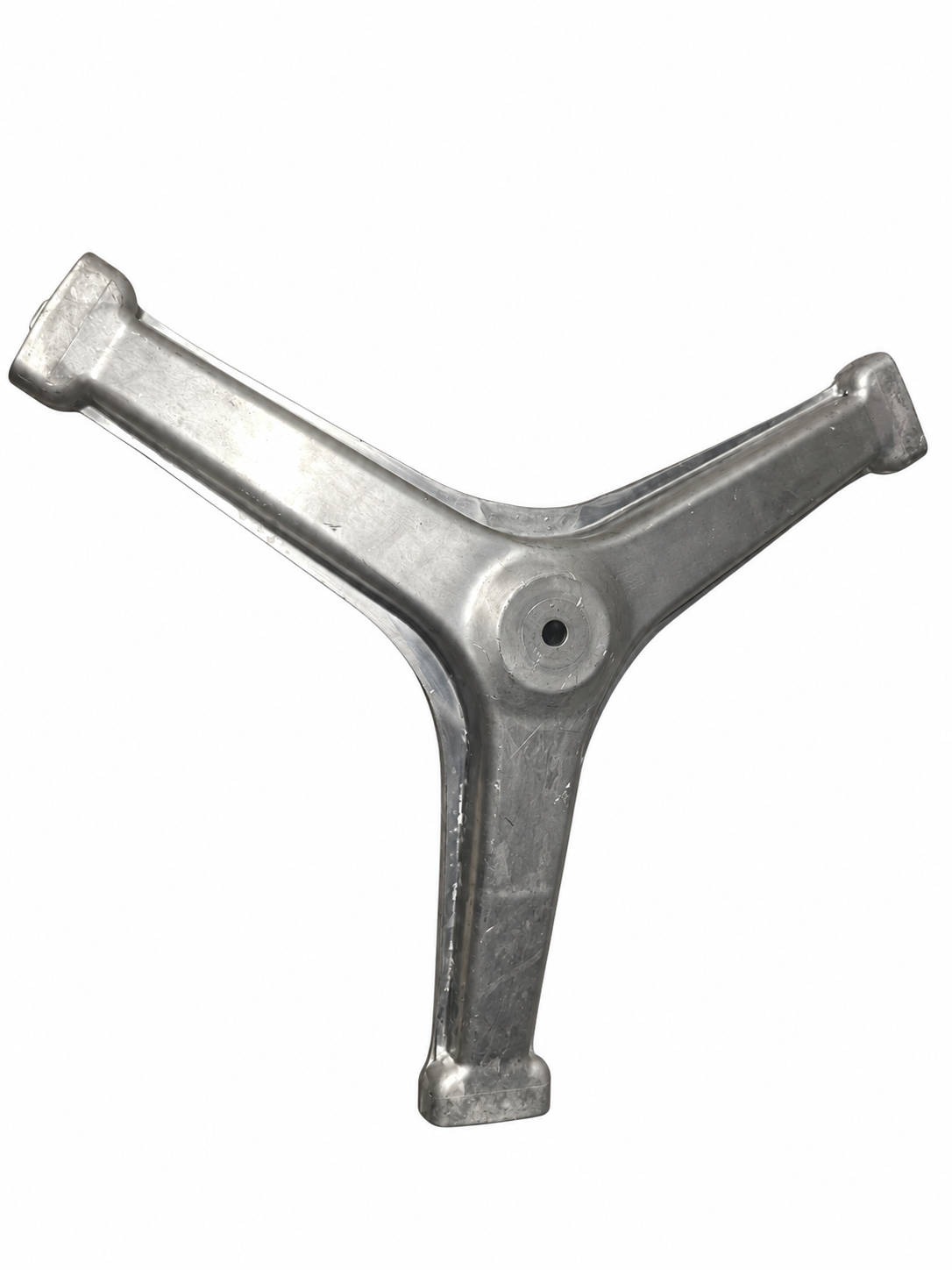

EBI 808 replacement drum spider rear view

For Samsung DC97-20825A Drum Spider Repair Kit – EBI 808, Bearings, Seals & 3 Bolts

Name: For Samsung DC97-20825A Drum Spider Repair Kit – EBI 808, Bearings, Seals & 3 Bolts
SKU: WGR-EBI808-6206-6207-SEALS-3B
Price: 125 GBP
Availability: InStock

£125.00

EBI 808 replacement drum spider with fitted shaft, 3 mounting bolts, 6206Z and 6207Z bearings, oil seal and tub joint seal. Alternative to Samsung DC97-20825A; not a genuine Samsung product. Please check your full model code and all kit components before ordering.

1 in stock

Buy with confidenceUK-based appliance repair specialistFitment help before orderingSecure checkout

SKU: WGR-EBI808-6206-6207-SEALS-3B Categories: Drum Spiders / Bearing Crosses, Washing Machine Spiders

WHITE GOODS RESCUE

APPLIANCE PARTS & REPAIR SUPPORT

DRUM SPIDER • BEARINGS • SEALS • BOLTS

Give your repair
a solid foundation.

Drum spider repair kit for Samsung DC97-20825A

EBI 808 | Spider made in Italy

Compatible alternative part — not a genuine Samsung product.
Manufactured by EBI. Samsung names and references identify compatible appliances only.

One set. The key parts for your drum repair.

Bring the main drum repair components together in one order: an Italian-made EBI 808 spider with fitted shaft, two replacement bearings, an oil seal, a tub joint seal and three mounting bolts. Designed for repairs requiring the DC97-20825A spider and the bearing and seal specifications shown below. Check every component against your appliance before ordering.

Spider manufacturer	EBI

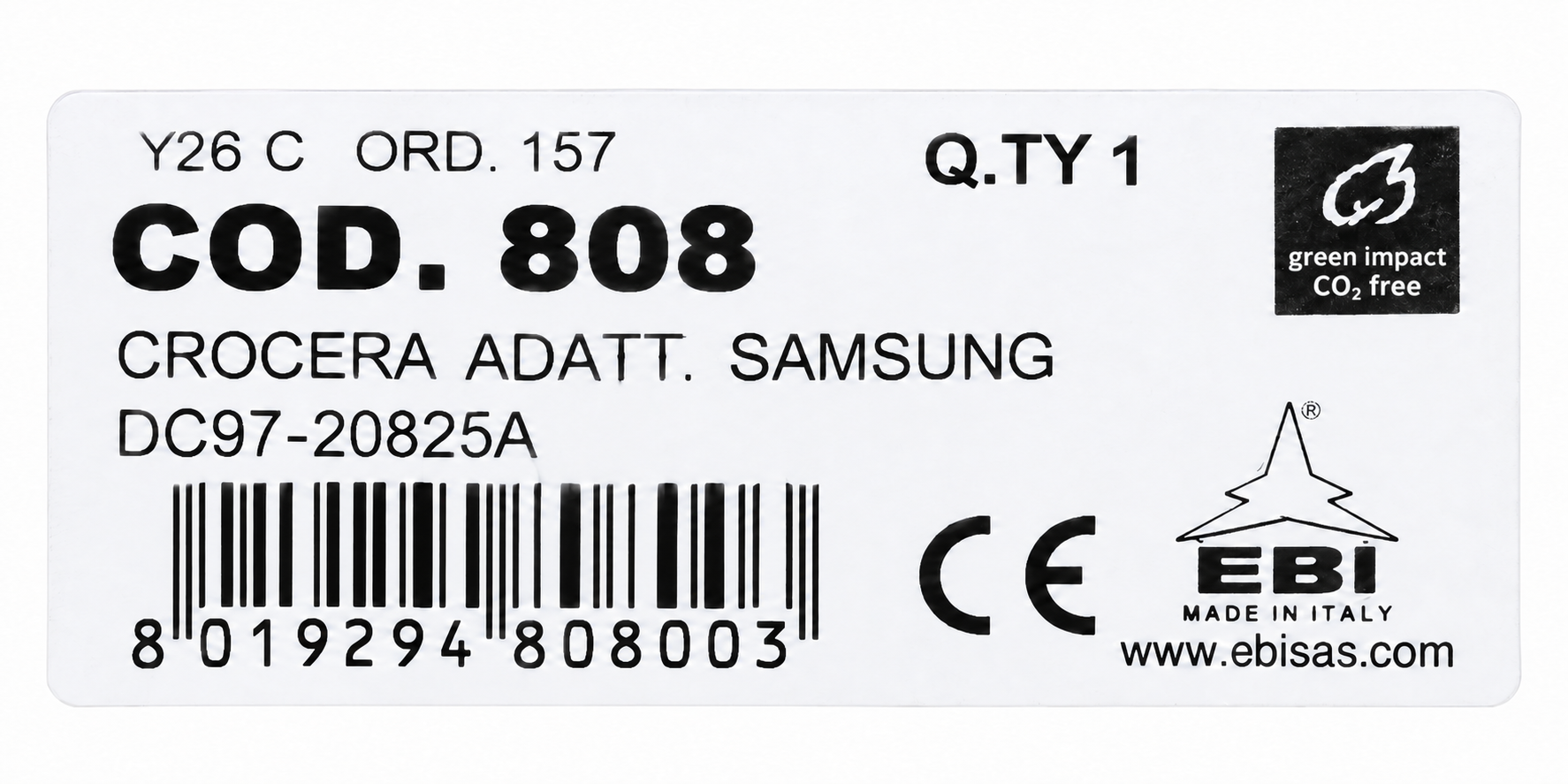

Manufacturer code	808 / COD. 808
Replaces reference	DC97-20825A
Part type	Three-arm drum spider / bearing cross with shaft

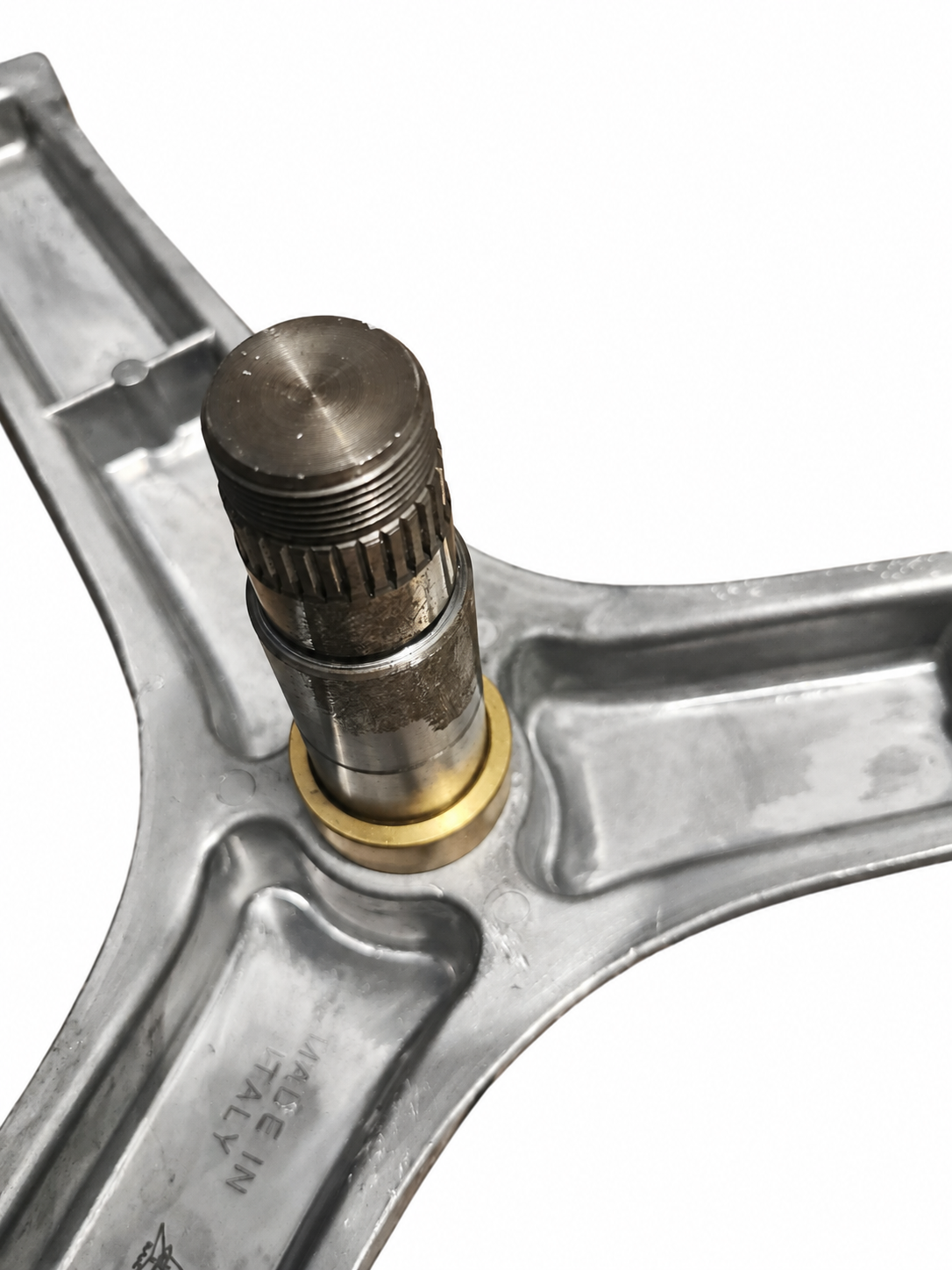

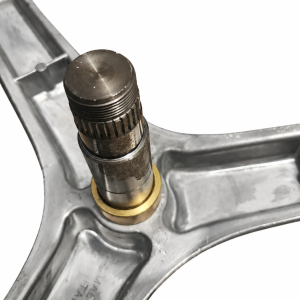

Shaft design	External threaded end with splined drive section — see gallery close-up
Spider condition	New replacement part; surface finish shown in photographs

Included in your order

1 × EBI 808 drum spider with fitted shaft
3 × mounting bolts, as pictured
1 × 6206Z bearing — 30 × 62 × 16 mm
1 × 6207Z bearing — 35 × 72 × 17 mm
1 × oil seal — 45.5 × 84 mm
1 × tub joint seal

Three bolts are supplied; check the fixing quantity required by your appliance. The tub seal is the seal between the tub sections. Pulley nut and other unlisted fittings are not included. EBI branding and Italian origin refer to the spider only.

Please check compatibility before buying

Match the complete model code, including the suffix after the slash and production version, and check the bearings and both seals. Similar model names can use different components. Matching the spider reference alone does not confirm the complete kit. Check DC97-20825A, bearing sizes, oil seal dimensions and tub seal profile against your original parts. Compare the shaft, splines and fixing points with the gallery photographs.

Unsure? Send White Goods Rescue a photograph of your appliance rating plate through our contact page before ordering.

Samsung model reference guide

The bearing and seal kit is listed for WW10N645RBW. The codes below are reference applications for the DC97-20825A spider; they are not a blanket confirmation that both seals and bearings fit every version. Please verify the complete kit for your exact model before buying.

WD models
WD10N642R2A/EN · WD10N642R2W/EG · WD10N642R2W/WS · WD10N642RAW/EE · WD10N644R2W/LE · WD10N645R2W/EP · WD10N645RAW/EU · WD10N645RAX/EU · WD10T534ABW/S2 · WD10T534DBE/S6 · WD10T534DBW/S3 · WD10T634DBH/S3 · WD10T654ABH/S5 · WD10T654DBE/S3 · WD10T654DBH/S1 · WD10T654DBN/S1 · WD10T734DBH/S7 · WD10T754ABT/S2 · WD10T754DBH/S3 · WD10T754DBH/S7 · WD11N64FRAX/ED · WD11T554AWW/S2 · WD11T754AWH/S2 · WD1AN642R2W/EG · WD1CN642R2W/EN · WD1GT654ABX/S2

WW10N models
WW10N642RBA/EN · WW10N642RBW/EE · WW10N642RPA/EN · WW10N642RPW/EN · WW10N642RPW/LV · WW10N643RPW/EG · WW10N644RBW/LE · WW10N644RPW/LE · WW10N645RBW/EF · WW10N645RBW/EU · WW10N645RBX/EU · WW10N645RPW/EF · WW10N645RPW/EU · WW10N645RPX/EU · WW10N645RQW/EF

WW10T models
WW10T504AAE/S2 · WW10T504AAW/S2 · WW10T504DAE/S6 · WW10T504DAW/S1 · WW10T504DTW/S3 · WW10T534DAN/S1 · WW10T534DAT/S3 · WW10T534DAW/S1 · WW10T534DTW/S3 · WW10T554DAE/S3 · WW10T554DAN/S1 · WW10T554DAT/S3 · WW10T554DAW/S1 · WW10T554DAW/S3 · WW10T554DAX/S3 · WW10T554DTW/S3 · WW10T604CLH/S4 · WW10T634AHH/S2 · WW10T634DLH/S3 · WW10T634DLH/S7 · WW10T654ALE/S2 · WW10T654ALH/S2 · WW10T654ALH/S5 · WW10T654DLH/S3 · WW10T654DLH/S6 · WW10T654DLH/S7 · WW10T684DLN/S1 · WW10T734AWH/S2 · WW10T734DBH/S7 · WW10T734DWH/S3 · WW10T754ABT/S2 · WW10T754CBH/S4 · WW10T754DBH/S3

Further models
WW13T734CBH/S4 · WW14T654CLE/S4 · WW1CN642RBA/EN · WW1CN642RPW/EN · WW1DN642RPA/EN · WW8GT604ALE/S2 · WW8GT654ALH/S2 · WW8GT654ALX/S2 · WW9GT604ALE/S2 · WW9GT754AWH/S2

Before fitting

Inspect the tub, bearing seats and associated fittings before installation. Replace worn components and follow the service instructions for your exact appliance. Bearing or spider replacement will not correct unrelated damage to the drum or tub.

Please review the gallery for the spider, shaft close-up, three bolts, bearings and seals supplied. Delivery charges are calculated at checkout. Please see our delivery and returns information for the applicable terms.

WHITE GOODS RESCUE
The right part starts with the right model number.

Brand	EBI (spider)
Compatible Brand	For Samsung
MPN	808
Replacement Reference	DC97-20825A
Bearings	6206Z / 6207Z
Oil Seal	45.5 mm ID x 84 mm OD
Included Fixings	3 mounting bolts
